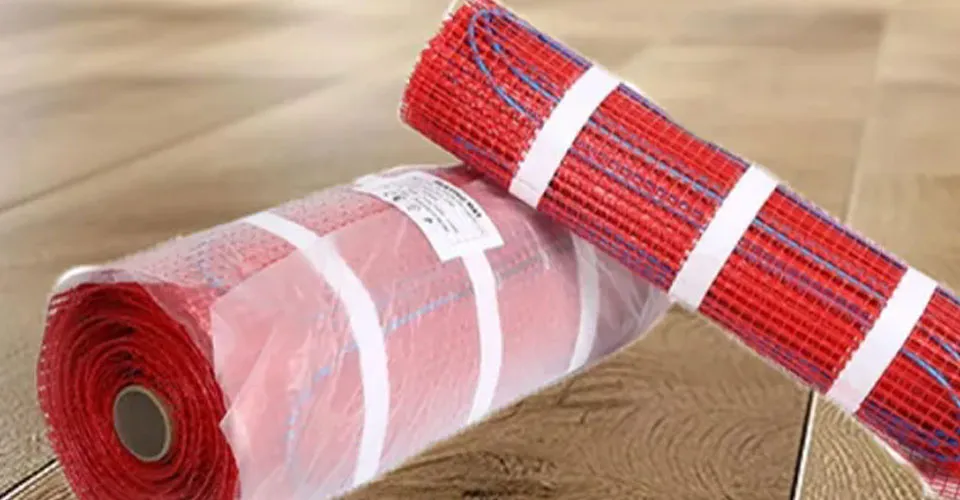

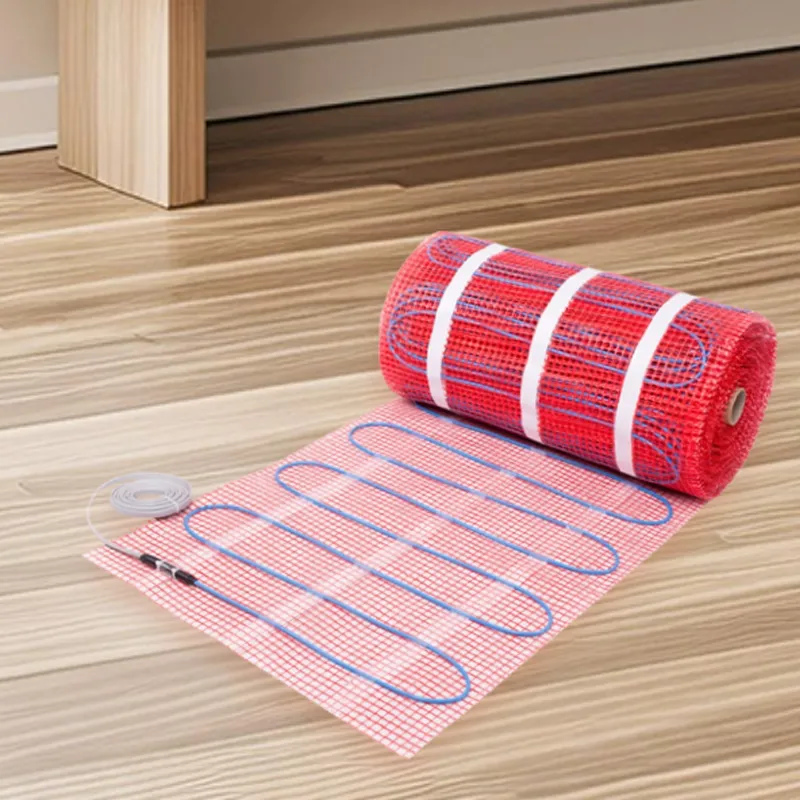

High power 200W heating mats deliver rapid, intensive warmth for larger or high-heat-loss areas. Designed for tile, vinyl, laminate, or stone floors, their slim, durable construction allows easy installation without raising floor height. Compatible with thermostats, these 200W mats provide fast, even heat distribution, precise temperature control, and reliable, long-lasting performance.
| ALTFV2R 100Watt/m2 Floor Heating Mats Ordering information | |||||||
| Specification | Watts | Voltage(V) | Power(w/m) | Length(m) | Area/m2 | Square Feet | |
| ALTFV2R-100-50/12-0.5 | 50 | 220/230 | 110/120 | 12 | 1 | 0.5 | 5.37 |
| ALTFV2R-100-100/12-1 | 100 | 220/230 | 110/120 | 12 | 2 | 1.0 | 10.8 |
| ALTFV2R-100-150/12-1.5 | 150 | 220/230 | 110/120 | 12 | 3 | 1.5 | 16.1 |
| ALTFV2R-100-200/12-2.0 | 200 | 220/230 | 110/120 | 12 | 4 | 2.0 | 21.5 |
| ALTFV2R-100-250/12-2.5 | 250 | 220/230 | 110/120 | 12 | 5 | 2.5 | 26.9 |
| ALTFV2R-100-300/12-3.0 | 300 | 220/230 | 110/120 | 12 | 6 | 3.0 | 32.3 |
| ALTFV2R-100-350/12-3.5 | 350 | 220/230 | 110/120 | 12 | 7 | 3.5 | 37.7 |
| ALTFV2R-100-400/12-4.0 | 400 | 220/230 | 110/120 | 12 | 8 | 4.0 | 43.1 |
| ALTFV2R-100-500/12-5.0 | 500 | 220/230 | 110/120 | 12 | 10 | 5.0 | 53.8 |
| ALTFV2R-100-600/12-6.0 | 600 | 220/230 | 110/120 | 12 | 12 | 6.0 | 64.6 |
| ALTFV2R-100-700/12-7.0 | 700 | 220/230 | 110/120 | 12 | 14 | 7.0 | 75.3 |
| ALTFV2R-100-800/12-8.0 | 800 | 220/230 | 110/120 | 12 | 16 | 8.0 | 86.1 |
| ALTFV2R-100-900/12-9.0 | 900 | 220/230 | 110/120 | 12 | 18 | 9.0 | 96.9 |
| ALTFV2R-100-1000/12-10.0 | 1000 | 220/230 | 110/120 | 12 | 20 | 10.0 | 107.6 |
| ALTFV2R 150Watt/m2 Floor Heating Mats Ordering information | |||||||
| Specification | Watts | Voltage(V) | Power(w/m) | Length(m) | Area/m2 | Square Feet | |
| ALTFV2R-150-150/12-1 | 150 | 220/230 | 110/120 | 12 | 2 | 1.0 | 10.8 |
| ALTFV2R-150-225/12-1.5 | 225 | 220/230 | 110/120 | 12 | 3 | 1.5 | 16.1 |
| ALTFV2R-150-30012-2.0 | 300 | 220/230 | 110/120 | 12 | 4 | 2.0 | 21.5 |
| ALTFV2R-150-375/12-2.5 | 375 | 220/230 | 110/120 | 12 | 5 | 2.5 | 26.9 |
| ALTFV2R-150-450/12-3.0 | 450 | 220/230 | 110/120 | 12 | 6 | 3.0 | 32.3 |
| ALTFV2R-150-525/12-3.5 | 525 | 220/230 | 110/120 | 12 | 7 | 3.5 | 37.7 |
| ALTFV2R-150-600/12-4.0 | 600 | 220/230 | 110/120 | 12 | 8 | 4.0 | 43.1 |
| ALTFV2R-150-750/12-5.0 | 725 | 220/230 | 110/120 | 12 | 10 | 5.0 | 53.8 |
| ALTFV2R-150-900/12-6.0 | 900 | 220/230 | 110/120 | 12 | 12 | 6.0 | 64.6 |
| ALTFV2R-150-1050/12-7.0 | 1050 | 220/230 | 110/120 | 12 | 14 | 7.0 | 75.3 |
| ALTFV2R-150-1200/12-8.0 | 1200 | 220/230 | 110/120 | 12 | 16 | 8.0 | 86.1 |
| ALTFV2R-150-1350/12-9.0 | 1350 | 220/230 | 110/120 | 12 | 18 | 9.0 | 96.9 |
| ALTFV2R-150-1500/12-10.0 | 1500 | 220/230 | 110/120 | 12 | 20 | 10.0 | 107.6 |
| ALTFV2R-150-1650/12-11.0 | 1650 | 220/230 | - | 12 | 22 | 11.0 | 118.34 |
| ALTFV2R-150-2250/12-12.0 | 1800 | 220/230 | - | 12 | 24 | 12.0 | 129.10 |
| ALTFV2R-150-2250/12-15.0 | 2250 | 220/230 | - | 12 | 30 | 15.0 | 161.38 |
High Watt Density – Provides strong, rapid heat output for larger or colder spaces.
Fast Heat-Up Time – Quickly warms floors for immediate comfort.
Even Heat Distribution – Eliminates cold spots with consistent coverage.
Slim Profile – Installs under tile, stone, vinyl, or laminate without raising floor levels.
Energy Efficient – Optimized for high performance while controlling power use.
Thermostat Compatible – Ensures precise and safe temperature regulation.
Durable Construction – Built for long-lasting use under demanding conditions.
