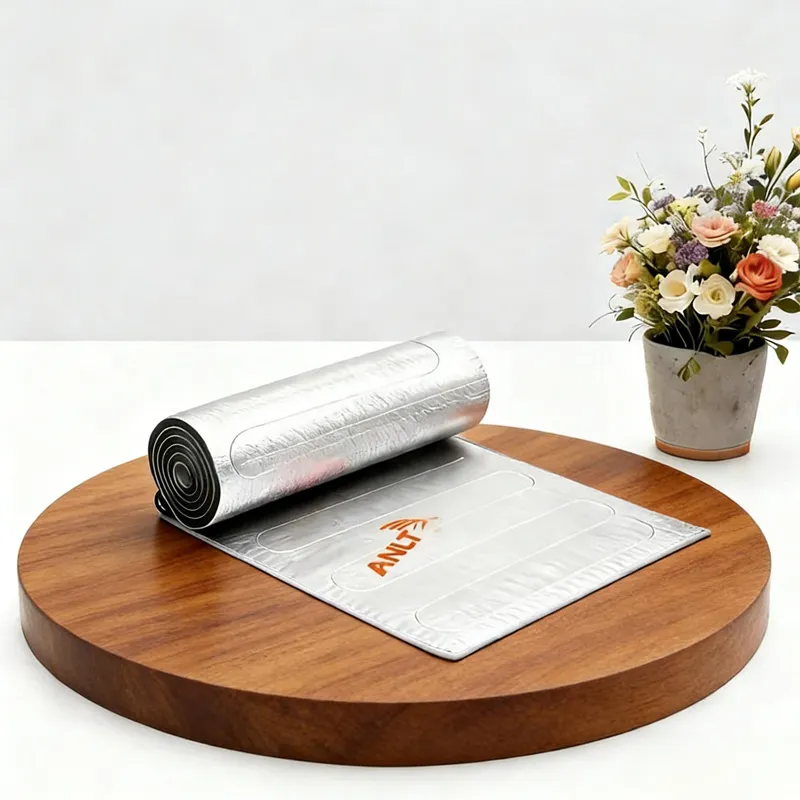

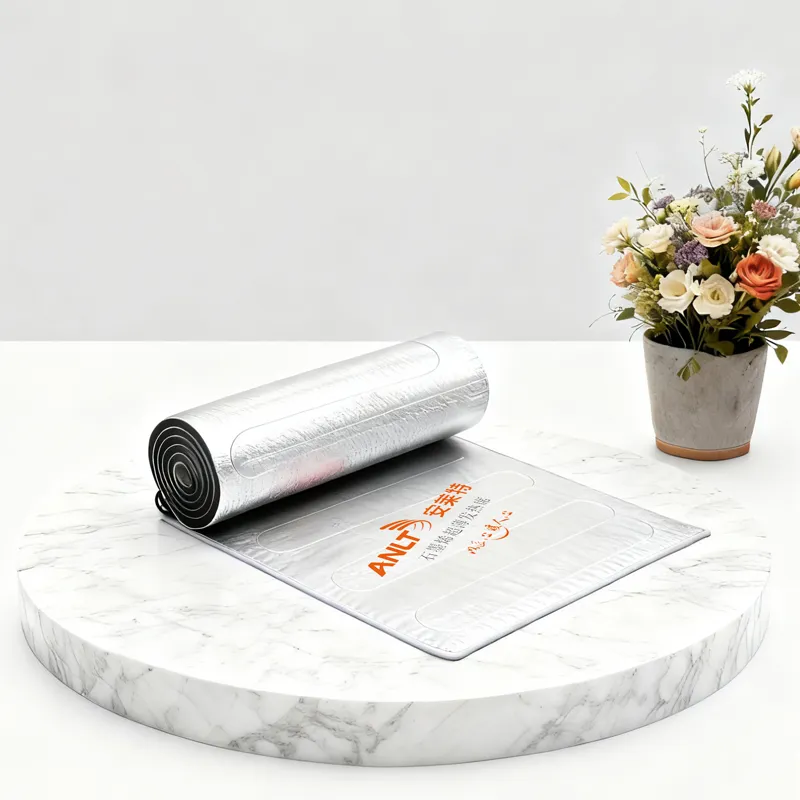

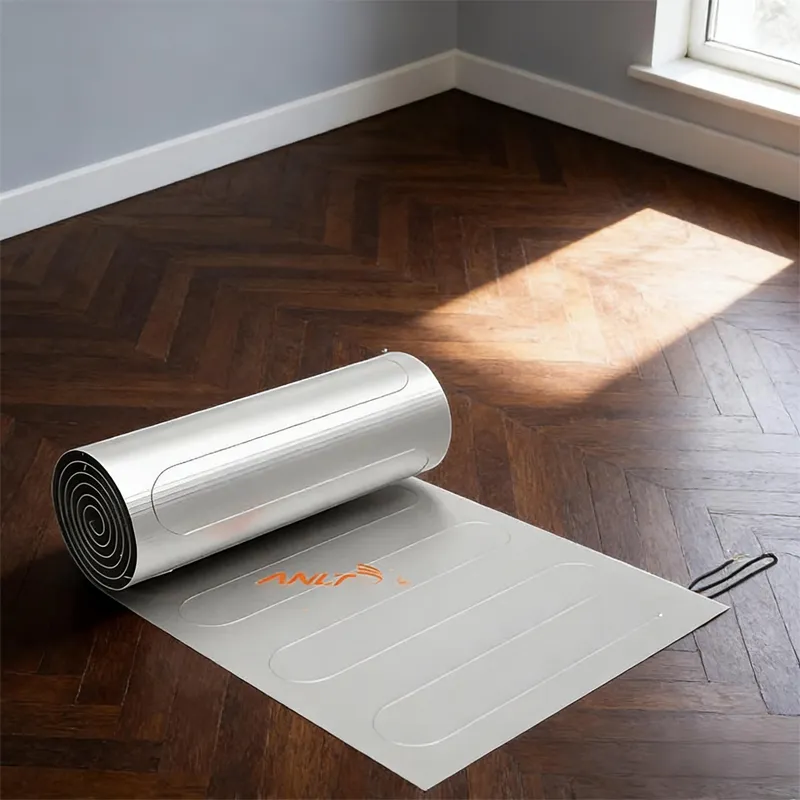

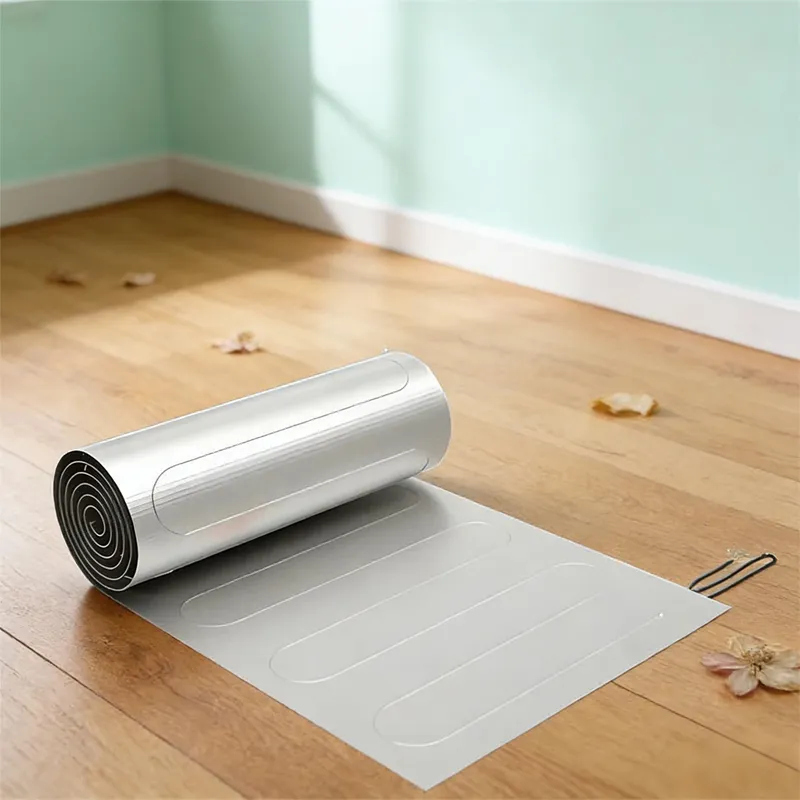

ANLT thermal technology’s 150W standard electric aluminum foil mat delivers reliable and efficient underfloor heating for everyday residential and commercial applications. Designed with high-conductivity aluminum foil, it ensures rapid heat transfer and uniform warmth across floor surfaces. Its ultra-thin, lightweight construction makes installation simple under laminate, wood, vinyl, or carpet underlay. Offering the perfect balance between performance and energy efficiency, this mat provides long-lasting comfort, safety, and cost-effective heating for modern living spaces.
| 220V/230V | Heated Area | Mat Dimensions | Watts(150w/m2) | AMPS(A) | Ohms(Ω) | ||
| specification | M2 | Sq.Ft | m*m | in*ft | |||
| ALTAF-150-1 | 1 | 10.8 | 0.5*2 | 20*6.5 | 150 | 0.7 | 352.7 |
| ALTAF-225-1.5 | 1.5 | 16.1 | 0.5*3 | 20*9.7 | 225 | 1.0 | 235.1 |
| ALTAF-300-2 | 2 | 21.5 | 0.5*4 | 20*12.9 | 300 | 1.3 | 176.3 |
| ALTAF-375-2.5 | 2.5 | 26.9 | 0.5*5 | 20*16.1 | 375 | 1.6 | 141.1 |
| ALTAF-450-3 | 3 | 32.3 | 0.5*6 | 20*19.4 | 450 | 2.0 | 117.6 |
| ALTAF-525-3.5 | 3.5 | 37.7 | 0.5*7 | 20*22.6 | 525 | 2.3 | 100.8 |
| ALTAF-600-4 | 4 | 43.1 | 0.5*8 | 20*25.8 | 600 | 2.6 | 88.2 |
| ALTAF-675-4.5 | 4.5 | 48.4 | 0.5*9 | 20*29.1 | 675 | 2.9 | 78.4 |
| ALTAF-750-5 | 5 | 53.8 | 0.5*10 | 20*32.3 | 750 | 3.3 | 70.5 |
| ALTAF-900-6 | 6 | 64.6 | 0.5*12 | 20*38.8 | 900 | 3.9 | 58.8 |
| ALTAF-1050-7 | 7 | 75.3 | 0.5*14 | 20*45.2 | 1050 | 4.6 | 50.4 |
| ALTAF-1200-8 | 8 | 86.1 | 0.5*16 | 20*51.7 | 1200 | 5.2 | 44.1 |
| ALTAF-1350-9 | 9 | 96.9 | 0.5*18 | 20*58.1 | 1350 | 5.9 | 39.2 |
| ALTAF-1500-10 | 10 | 107.6 | 0.5*20 | 20*64.6 | 1500 | 6.5 | 35.3 |
| ALTAF-1800-12 | 12 | 129.2 | 0.5*24 | 20*78.8 | 1800 | 7.8 | 29.4 |
Gentle Heating Output – Provides comfortable warmth suitable for small rooms or low-demand areas.
Ultra-Thin and Flexible – Easy to install under various flooring types without raising floor height.
Even Heat Distribution – Ensures consistent warmth across the floor surface.
Energy Efficient – Reduces electricity consumption while maintaining stable comfort.
Durable and Safe – High-quality materials and insulation ensure long-lasting, reliable operation.
