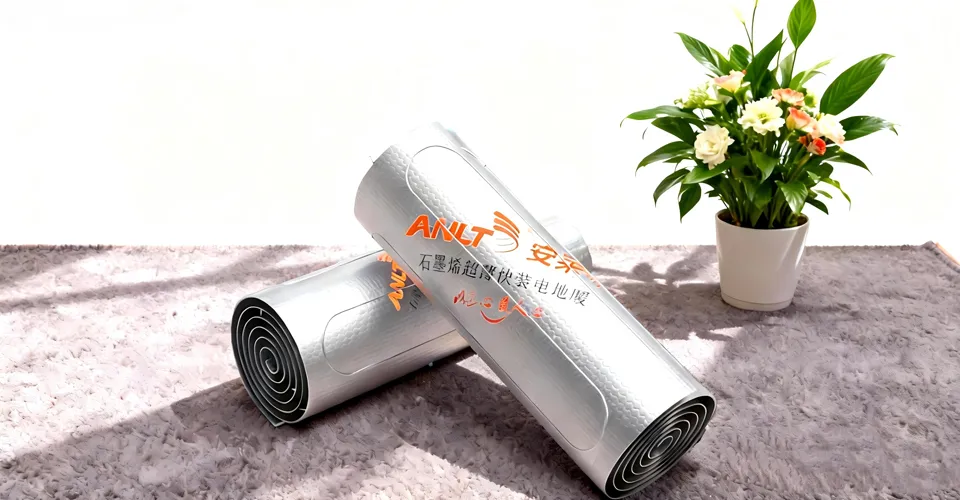

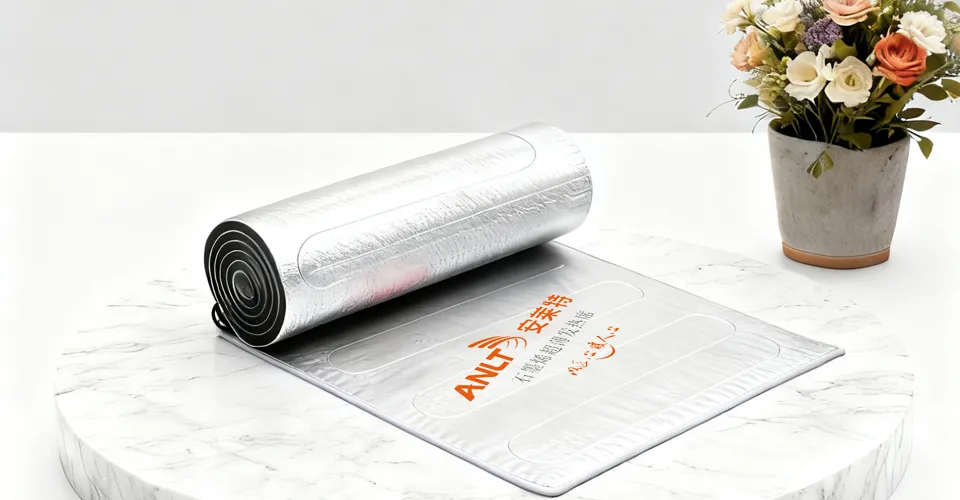

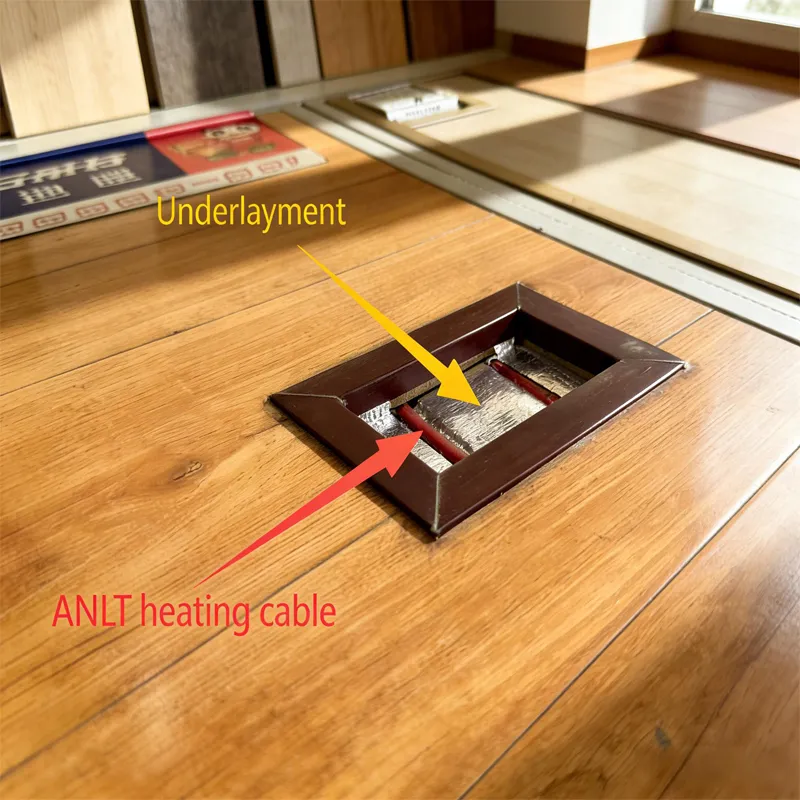

ANLT Thermal Technology’s Underlayment for Vinyl Flooring is engineered to deliver superior comfort, insulation, and durability beneath vinyl surfaces. Its aluminum foil layer evenly distributes heat, ensuring consistent warmth without damaging delicate flooring. The ultra-thin, flexible design makes installation simple, maintaining floor height while enhancing energy efficiency. Moisture-resistant and reliable, this underlayment provides both protection and comfort, making it an excellent solution for modern underfloor heating systems used with vinyl floors.
| 220V/230V | Heated Area | Mat Dimensions | Watts(150w/m2) | AMPS(A) | Ohms(Ω) | ||
| specification | M2 | Sq.Ft | m*m | in*ft | |||
| ALTAF-150-1 | 1 | 10.8 | 0.5*2 | 20*6.5 | 150 | 0.7 | 352.7 |
| ALTAF-225-1.5 | 1.5 | 16.1 | 0.5*3 | 20*9.7 | 225 | 1.0 | 235.1 |
| ALTAF-300-2 | 2 | 21.5 | 0.5*4 | 20*12.9 | 300 | 1.3 | 176.3 |
| ALTAF-375-2.5 | 2.5 | 26.9 | 0.5*5 | 20*16.1 | 375 | 1.6 | 141.1 |
| ALTAF-450-3 | 3 | 32.3 | 0.5*6 | 20*19.4 | 450 | 2.0 | 117.6 |
| ALTAF-525-3.5 | 3.5 | 37.7 | 0.5*7 | 20*22.6 | 525 | 2.3 | 100.8 |
| ALTAF-600-4 | 4 | 43.1 | 0.5*8 | 20*25.8 | 600 | 2.6 | 88.2 |
| ALTAF-675-4.5 | 4.5 | 48.4 | 0.5*9 | 20*29.1 | 675 | 2.9 | 78.4 |
| ALTAF-750-5 | 5 | 53.8 | 0.5*10 | 20*32.3 | 750 | 3.3 | 70.5 |
| ALTAF-900-6 | 6 | 64.6 | 0.5*12 | 20*38.8 | 900 | 3.9 | 58.8 |
| ALTAF-1050-7 | 7 | 75.3 | 0.5*14 | 20*45.2 | 1050 | 4.6 | 50.4 |
| ALTAF-1200-8 | 8 | 86.1 | 0.5*16 | 20*51.7 | 1200 | 5.2 | 44.1 |
| ALTAF-1350-9 | 9 | 96.9 | 0.5*18 | 20*58.1 | 1350 | 5.9 | 39.2 |
| ALTAF-1500-10 | 10 | 107.6 | 0.5*20 | 20*64.6 | 1500 | 6.5 | 35.3 |
| ALTAF-1800-12 | 12 | 129.2 | 0.5*24 | 20*78.8 | 1800 | 7.8 | 29.4 |
Efficient Heat Reflection – Reflects radiant heat upward to maximize warmth.
Energy Efficiency – Minimizes heat loss through the wooden subfloor.
Ultra-Thin Profile – Easy to install without raising floor height.
Durability – Strong material resists wear for long-lasting performance.
Safe & Compatible – Designed for use with underfloor heating beneath wood floors.
